Description
Technical Specifications
Fork mounting dimensions according to ISO 2328
Technical characteristics according to ISO 2330
Manufacturing process according to ISO 9001
Welding process according to ISO 3834-2
• The total capacity of all forklift fork arms fitted to a truck shall not be less than the actual capacity of the truck.
• Means shall be provided on the fork carriage to prevent an unintentional lateral displacement of the fork arms.
• Standard pallet forks are designed for vertical pallet load applications without inverting. Their use is not recommended for rotator applications.

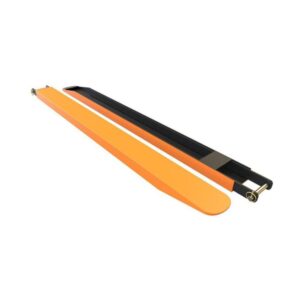

• In case of using a fork-arm extension according to ISO 13284, a minimum blade length of the parent fork of 0.6 x length of the fork-arm extension is required. Fork-arm extensions shall be designed to prevent accidental disengagement from the parent fork.
• According to ISO 5057, forks in service shall be inspected min. every 12 months and in case of visual defects or permanent deflection.
